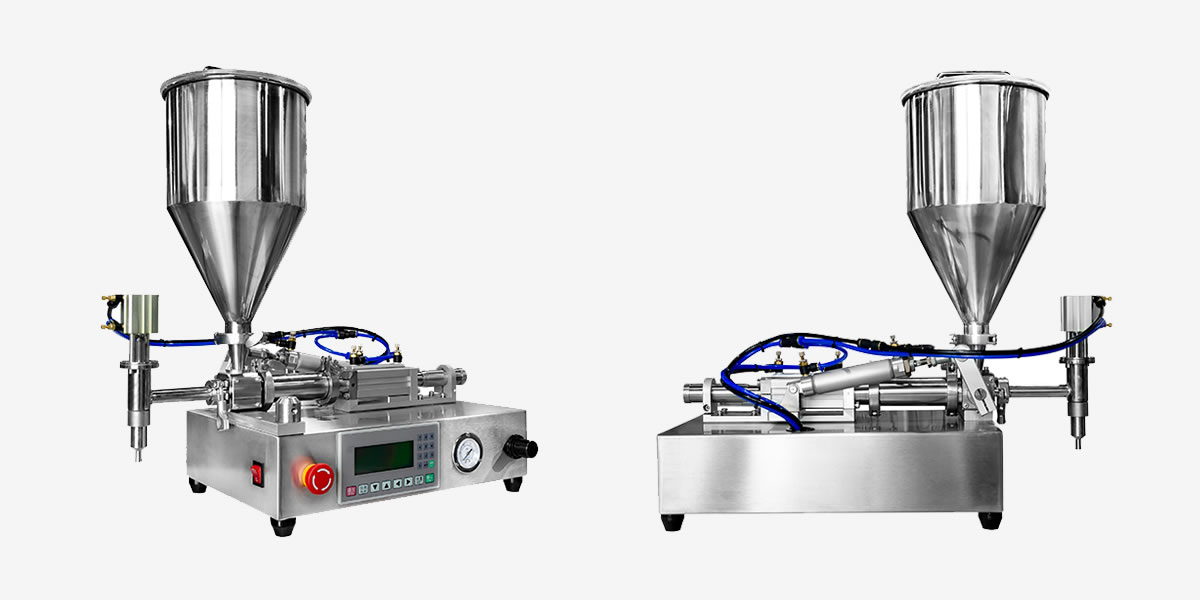

Meet the H12-1: Your Ultimate Solution for Precision Filling

The H12-1 Ceramic Rotary Valve Precision Filling Machine is a high-precision, high-quality liquid filling machine, engineered to meet the rigorous demands of various industries including food, pharmaceuticals, chemicals, and cosmetics. This machine is equipped with a touch-screen human-machine interface for easy operation and control, ensuring a seamless and reliable filling process.

Key features include a highly accurate ceramic pump system and components made from 316L stainless steel for all material contact parts, ensuring durability and resistance to corrosion. The machine casing is constructed from 304 stainless steel, providing a robust and hygienic structure that meets industry standards.

The H12-1 is designed for precision filling, making it an ideal choice for industries requiring accurate, consistent, and reliable filling processes. Its simple yet reliable operation ensures it is a top choice for businesses looking to enhance their production efficiency and product quality.

Advanced Features of the H12-1 Ceramic Rotary Valve Precision Filling Machine

  1. Pharmaceutical, food, cosmetic industry’s highest hygiene and health standards.
  2. Inert chemical stability, acid-base corrosion and high temperature resistance.
  3. Hard, abrasion resistant, particle release is extremely small, long service life.
  4. Dense material, water absorption as low as zero; very high surface finish, minimal friction; therefore minimal residual materials.
  5. Thermal expansion coefficient is small, piston clearance fit more, filling accuracy can be achieved online cleaning and sterilization.
H12-1 Ceramic Rotary Valve Precision Filling Machine

Technical Parameters

ModelH12-1H25-1H50-1H100H200
MaterialAlumina 99.7%, appearance is stainless steel 304L/316L
Filling Accuracy±0.25-0.5% (depending on the state of the material)
Filling Speed20-50times/min
Filling Volume1-12ml2-25ml3-50ml5-100m10-200ml
Filling Air Presure3.0A
PowerAC 220V 50-60Hz 250W
Size560 * 260 * 480mm
Weight15.5kgs

Ideal Applications for the H12-1 Ceramic Rotary Valve Precision Filling Machine

  • Packing machine with multiple columns, linear filling machine, multi-station rotation-type filling cap screwing machine and other matched filling equipment.
  • Widely applied to precision quantitative filling of industries such as medicine, pharmacy, food, chemistry, cosmetics, etc.
  • Used for precision quantitative filling of liquids and pasty fluid such as oral liquid, food and beverage, senior cosmetics, fragrance, fungicide, etc.
  • Used for precision quantitative filling of all kinds of acid and alkali corrosive liquid.
