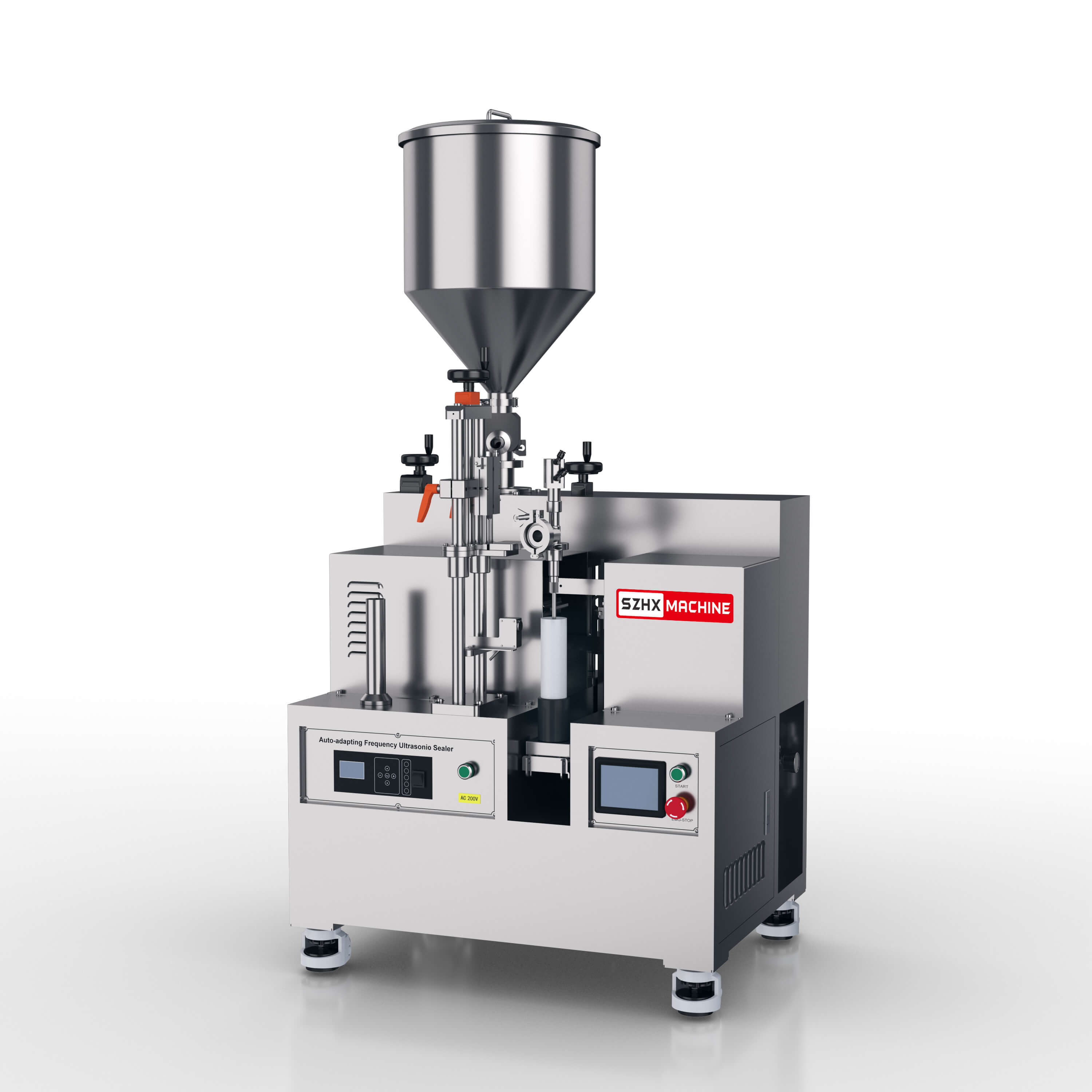

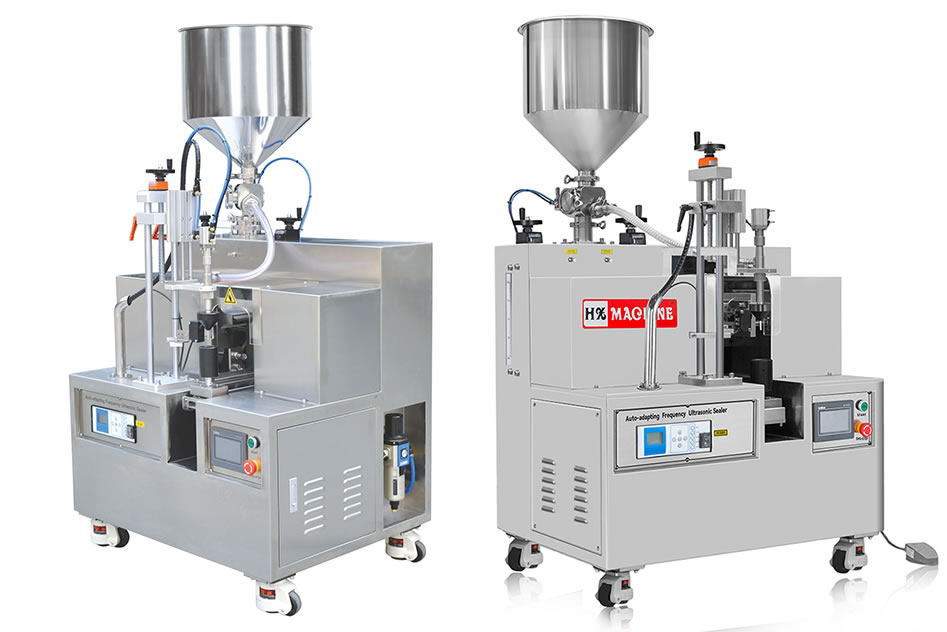

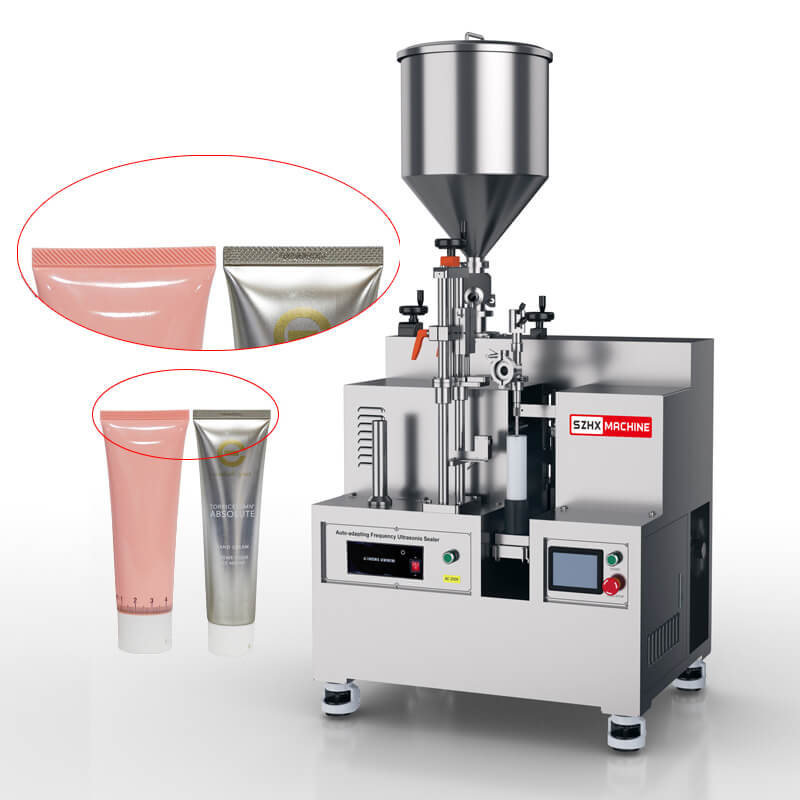

HX-002 Semi-Automatic Cosmetic Liquid Cream Tube Filling Sealing Machine
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
Meet the HX-002: Your Ultimate Solution for Cosmetic Liquid Cream Tube Filling Sealing
The ultrasonic sealing machine is a high-quality, high-performance liquid, paste tube filling and sealing machine. Manually put the tube, it could automatically detect the color mark, automatic filling, automatic sealing, automatic cutting. PLC programmable machine uses advanced touch interface, optical tracking, automatic positioning, so that the overall operation more simple, perfect, enable enterprises to improve production efficiency, reduce labor intensity and improve the device of choice for packaging grades.
Advanced Features of the HX-002 Semi-Automatic Cosmetic Liquid Cream Tube Filling Sealing Machine
- Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
- Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.

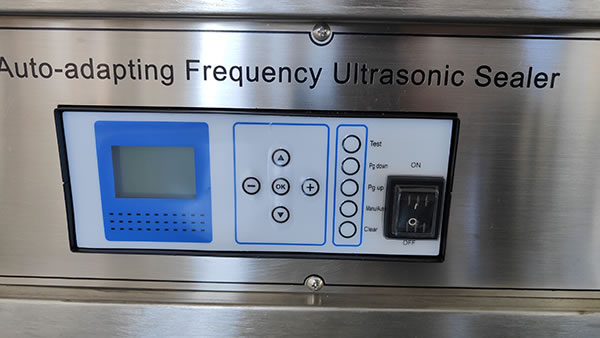

- Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

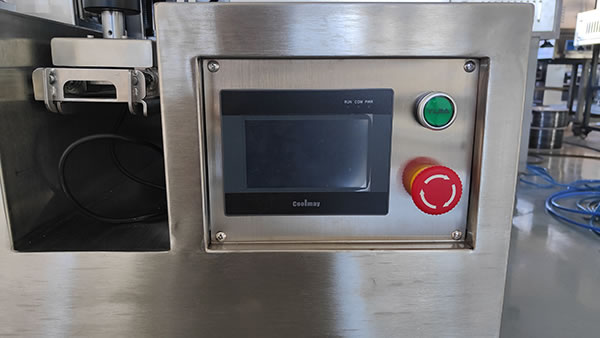

- PLC with touch screen control system, providing friendly operation experience.
- “Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.

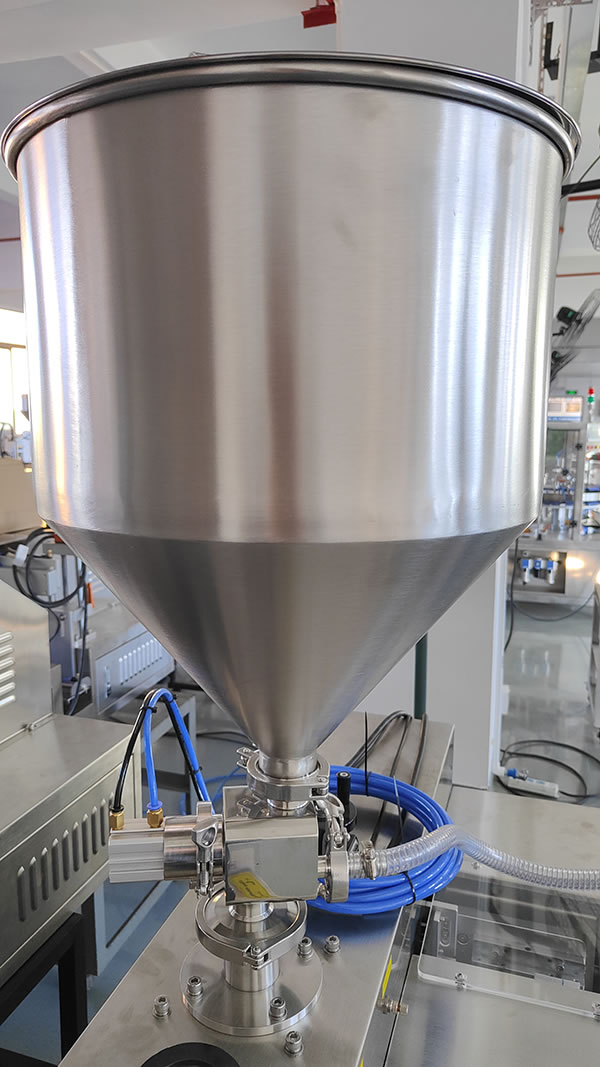

- Equipped with filler for both liquid and cream, with filling tolerance within ±1%.
- Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

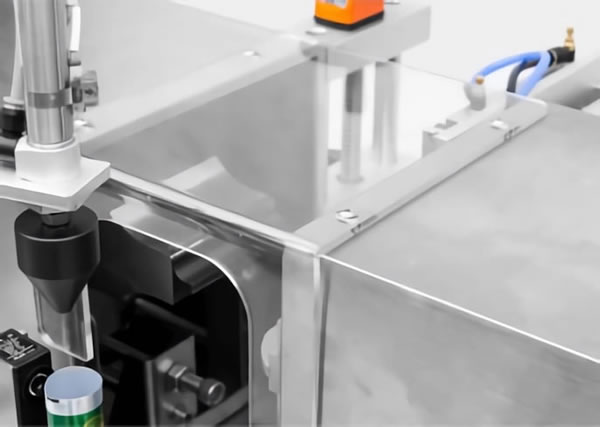

Safety Acrylic Cover
Protection cover, safety and beautiful design, anti-clamping hand
Safety Acrylic Cover
Protection cover, safety and beautiful design, anti-clamping hand

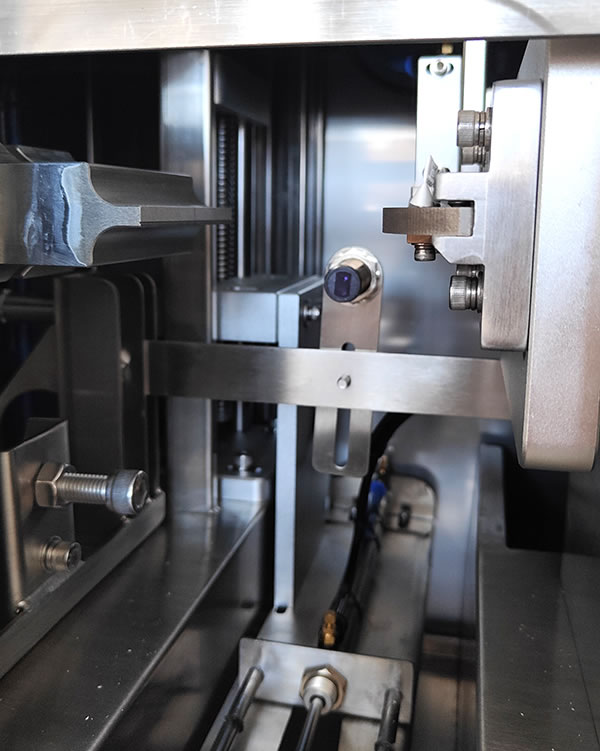

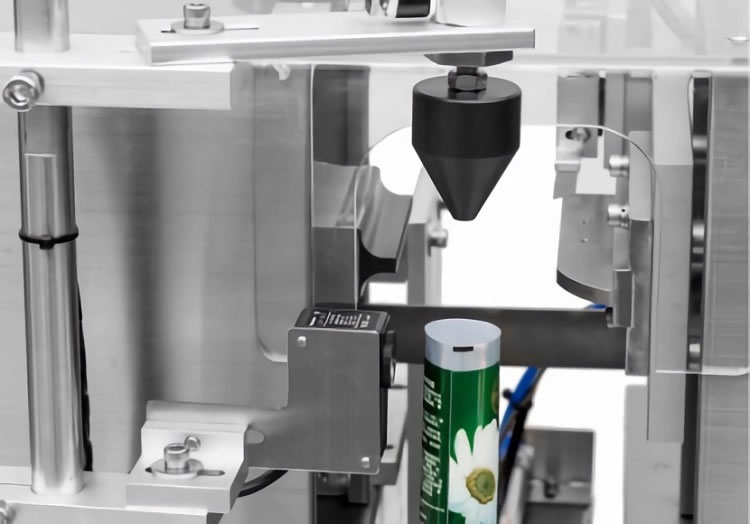

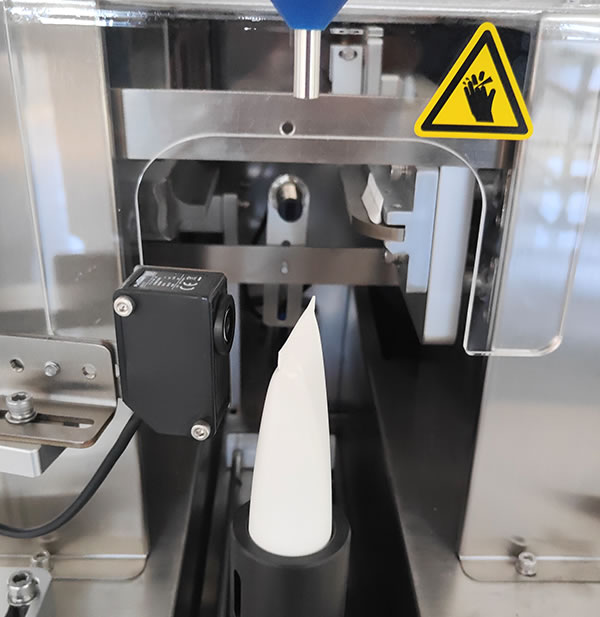

Add the Positioning device at color mark tracking station
More stable in color mark tracking Minimum the tube deformation influence to the accuracy

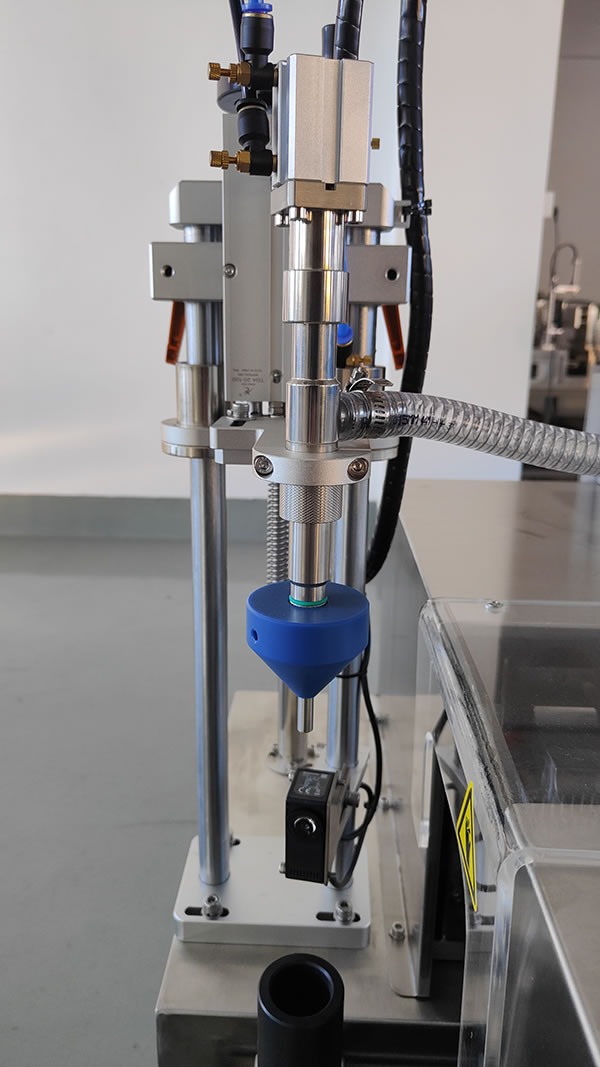

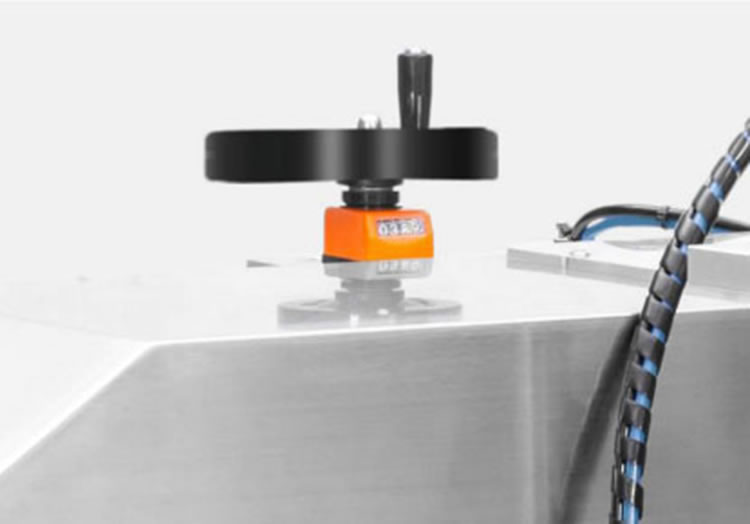

Adjustable lifting Bracket
Could adjust according to different tube height, digital position indicator, visual in adjustment

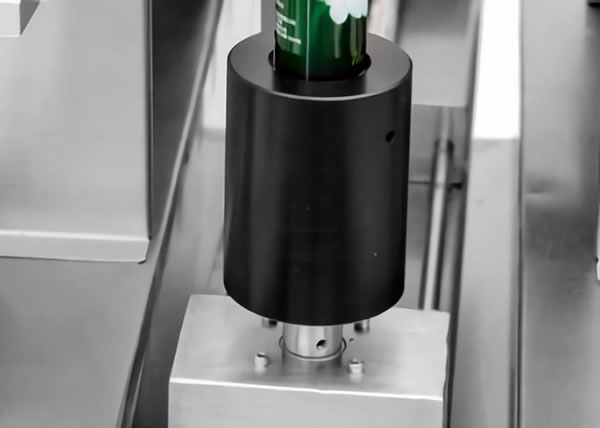

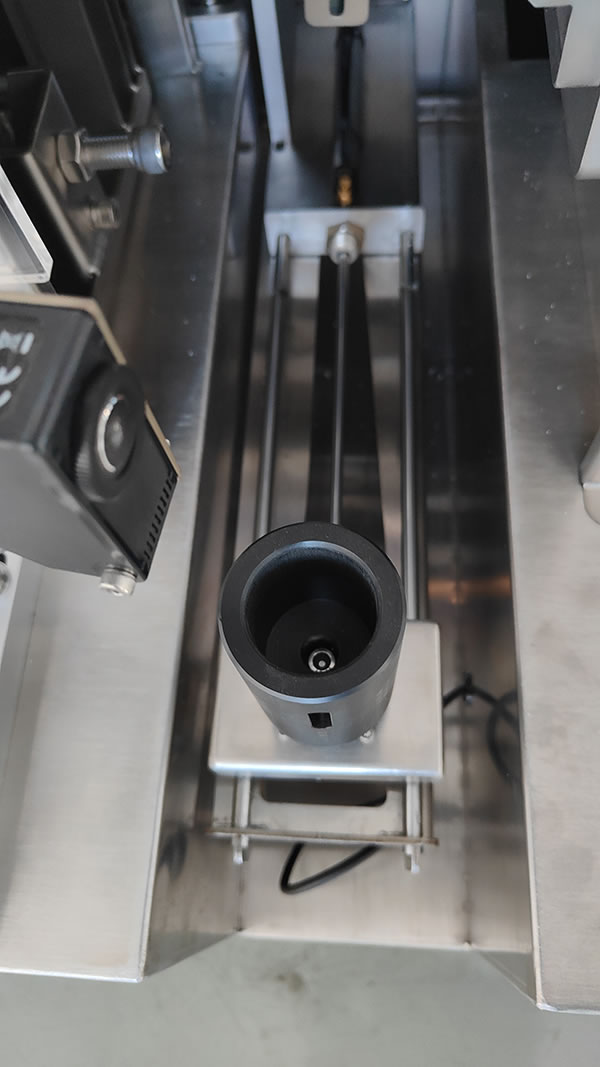

Tube Holders

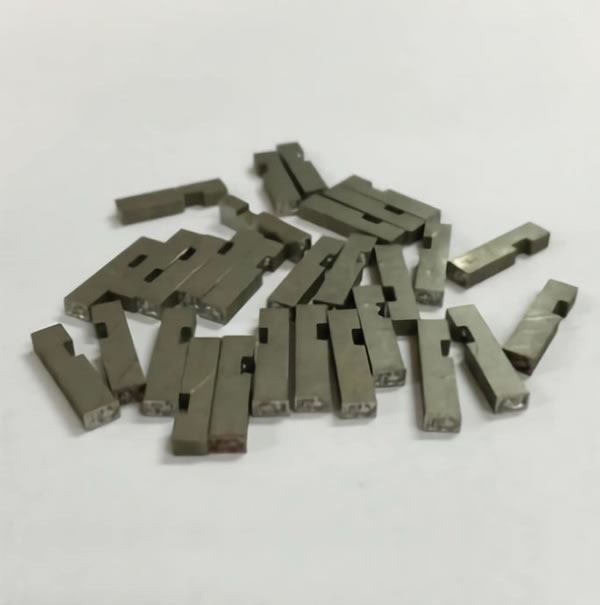

Date Code
Ideal Applications for the HX-002 Semi-Automatic Cosmetic Liquid Cream Tube Filling Sealing Machine
Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.

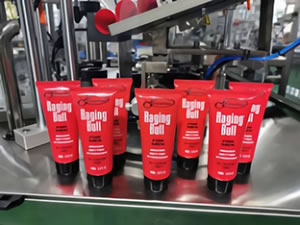

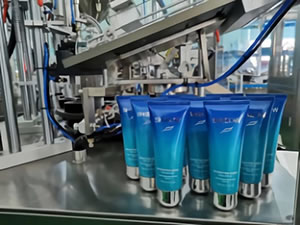

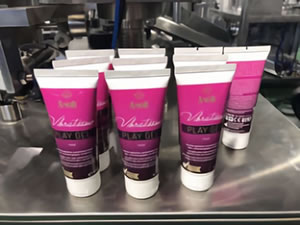

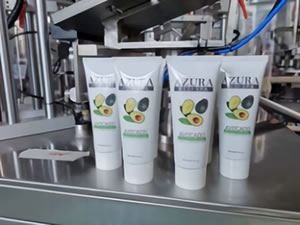

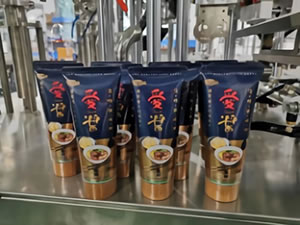

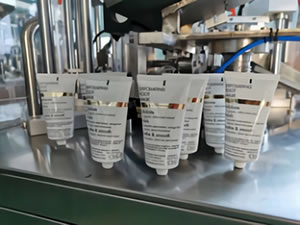

Note: The above pictures are samples printed after the customer purchased the machine. We are the equipment supplier
| Machine Parameters | |
|---|---|
| Model | HX-002 |
| Frequency | 20kHz |
| Power | 2600W |
| Power supply | AC220V/110V |
| Filling Range | A.6-60ml B.10-120ml C.25-250ml D.50-500ml |
| Filling accuracy | ±1g |
| Capacity | 10-15pcs/min |
| Tube diameter | 13-50mm |
| Tube height | 50-210mm |
| Working pressure | 0.5 MPa |

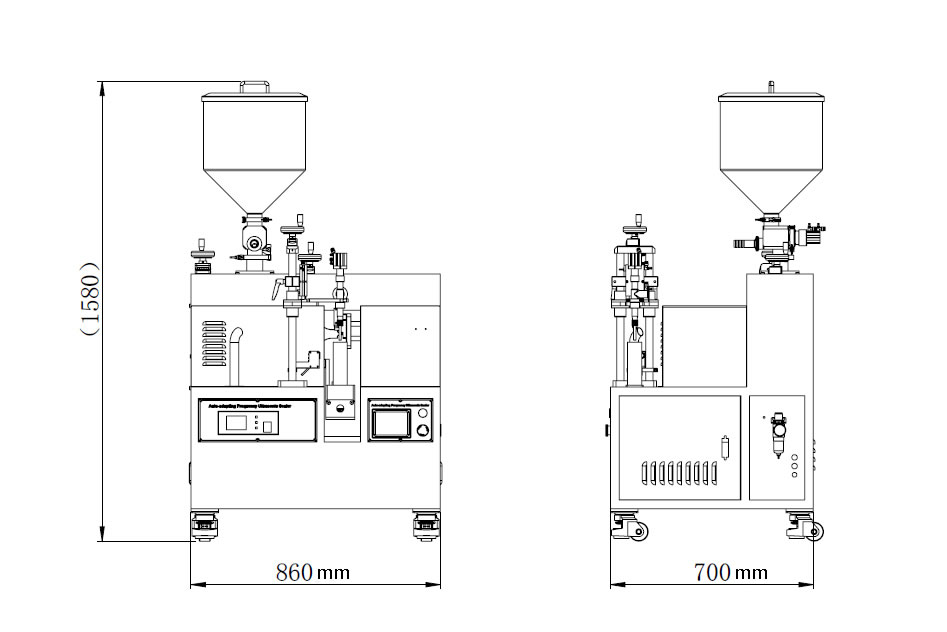

| Size | L1000*780*1550mm |
| N.W/G.W | 130kgs |
| Main part list: | |
|---|---|
| Ultrasonic system | Automatic frequency tracing |
| Benchmarking electric eye | Panasonic, Japan |
| PLC screen | Coolmay, CN |
| electric relay | Omron, Japan |
| Inductive switch | SICK, Germany |
| Air cylinder | AirTAC, China Taiwan |
| Solenoid valve | AirTAC, China Taiwan |
| Stepper motor | JMK motion, CN |
| Transducer | CN |
| Air source processor | AirTAC, China Taiwan |

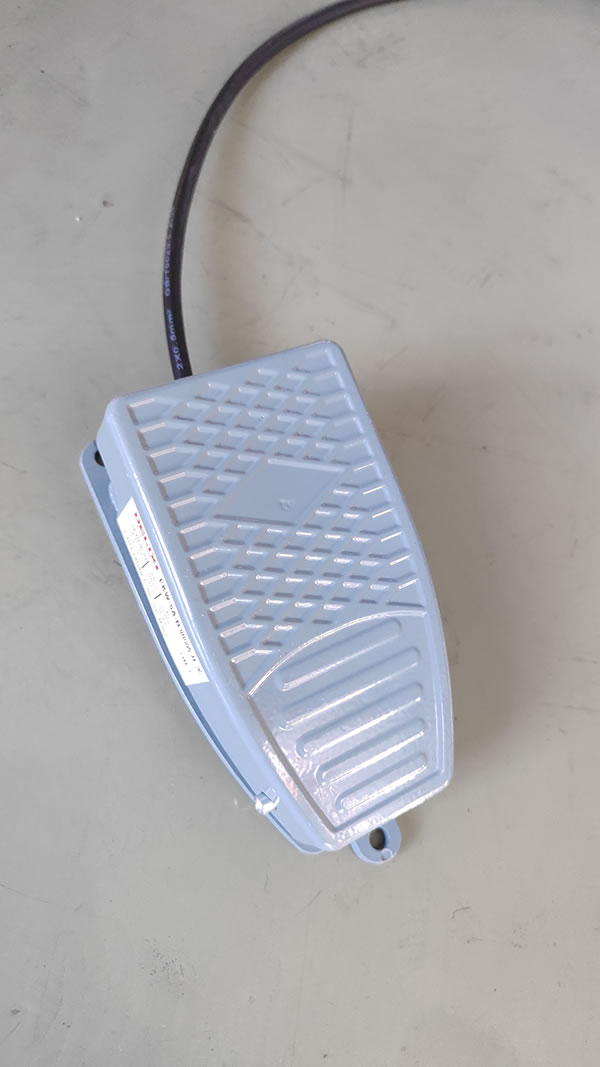

| Foot switch | DELIXI, CN |
