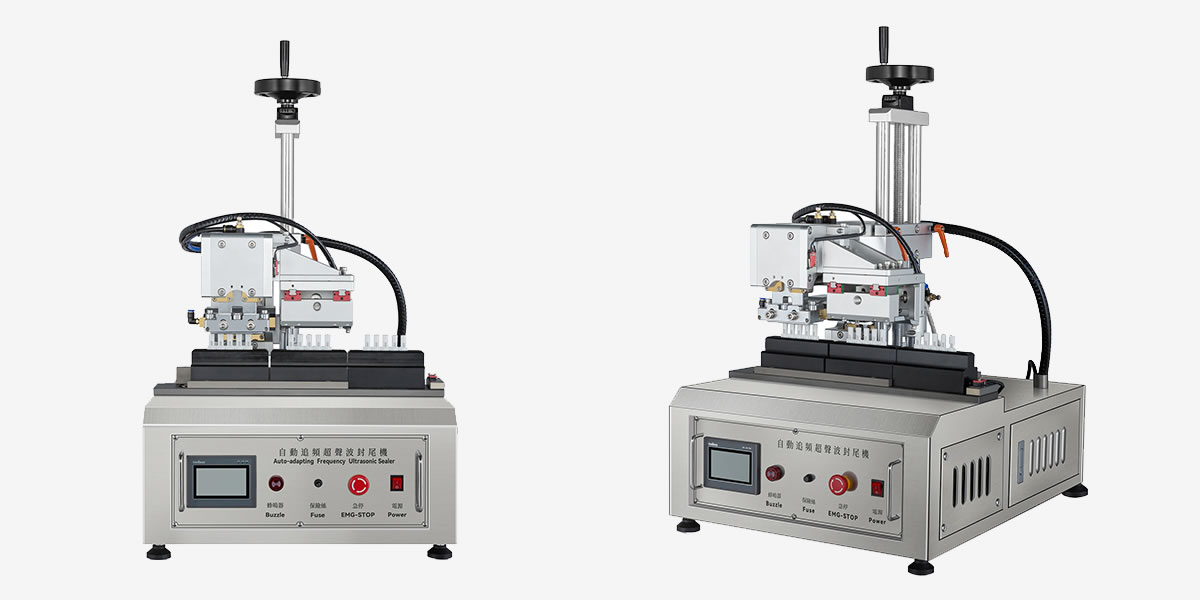

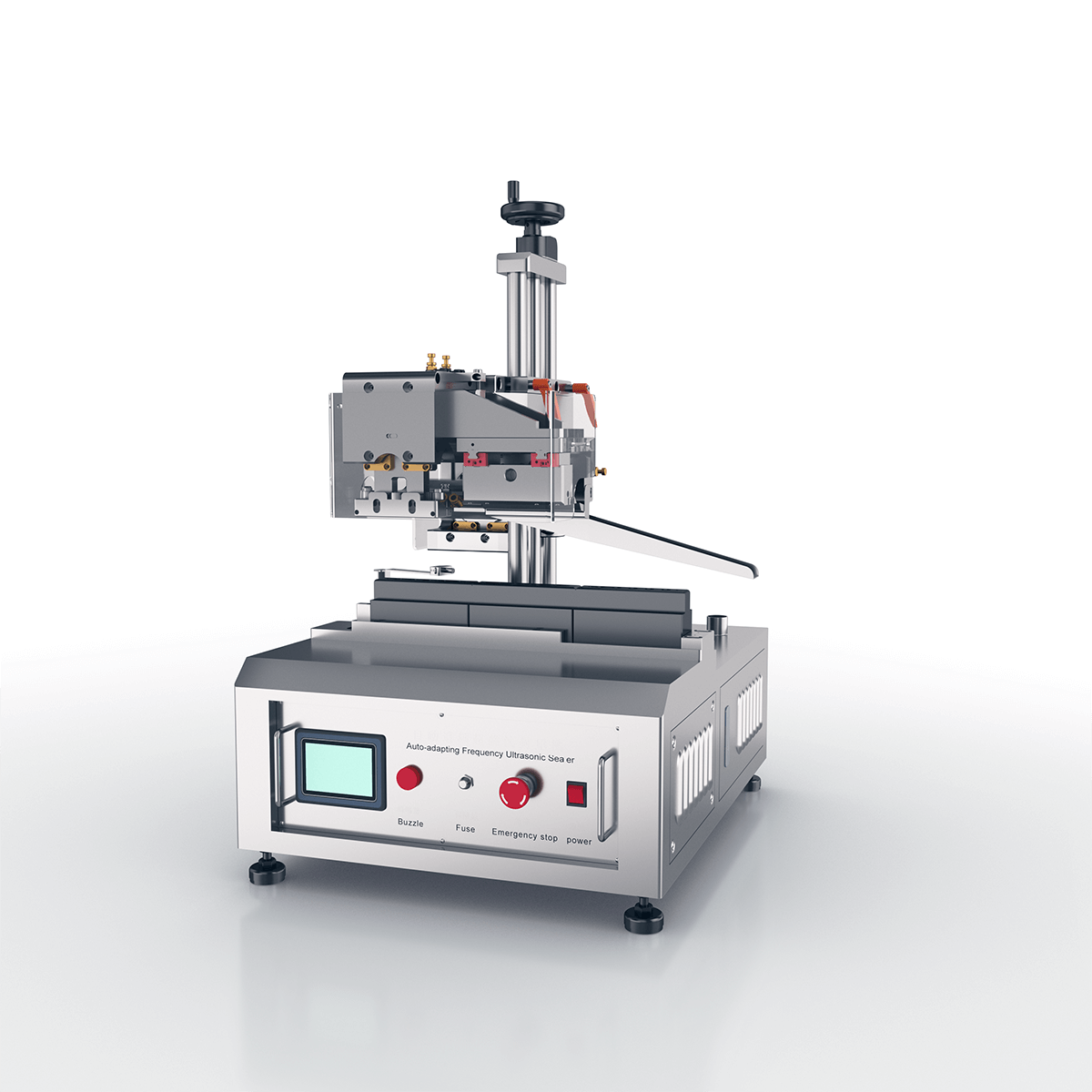

HX-003 Semi-Automatic Ultrasonic Special Tube Sealer Equipment
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
Meet the HX-003: Your Ultimate Solution for Ultrasonic Special Tube Sealer
The HX-003 Semi-Automatic Ultrasonic Special Tube Sealer is a versatile and reliable piece of equipment designed for precise sealing of various tube types, including those with unique shapes or materials. Ideal for small to medium-scale production, this machine combines advanced ultrasonic sealing technology with user-friendly operation to deliver consistent, high-quality seals. The semi-automatic design allows for easy tube placement and operation, making it perfect for businesses looking to enhance their packaging processes while maintaining flexibility and control. The HX-003 ensures a secure, leak-proof seal every time, helping you improve efficiency, reduce waste, and elevate the overall quality of your product packaging.
Technical Parameters
| Model | HX-003 |
| Frequency | 20kHz |
| Power | 2600W |
| Power Supply | AC220V/110V 1PH 50/60HZ |
| Sealing Dia. | 20-50mm |
| Tube Height | 50-250mm |
| Capacity | 8-18pcs/min |
| Air Pressure | 0.5-0.6MPa |
| Dimension | L560*W537*880mm |
| N.W | 105kgs |
Advanced Features of the HX-003 Semi-Automatic Ultrasonic Special Tube Sealer Equipment
- Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
- Manually feed the tube, machine could automatically start sealing and end trimming.
- Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
- PLC with touch screen control system, providing friendly operation experience.
- Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

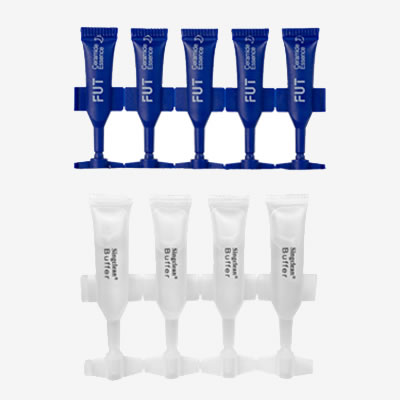

- Suitable for strip tube, normal tube, curved tube or customer-made shape tube sealing and trimming.
- No tube, no sealing and trimming function, reducing the machine and mould loss.
Ideal Applications for the HX-003 Semi-Automatic Ultrasonic Special Tube Sealer Equipment
Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
