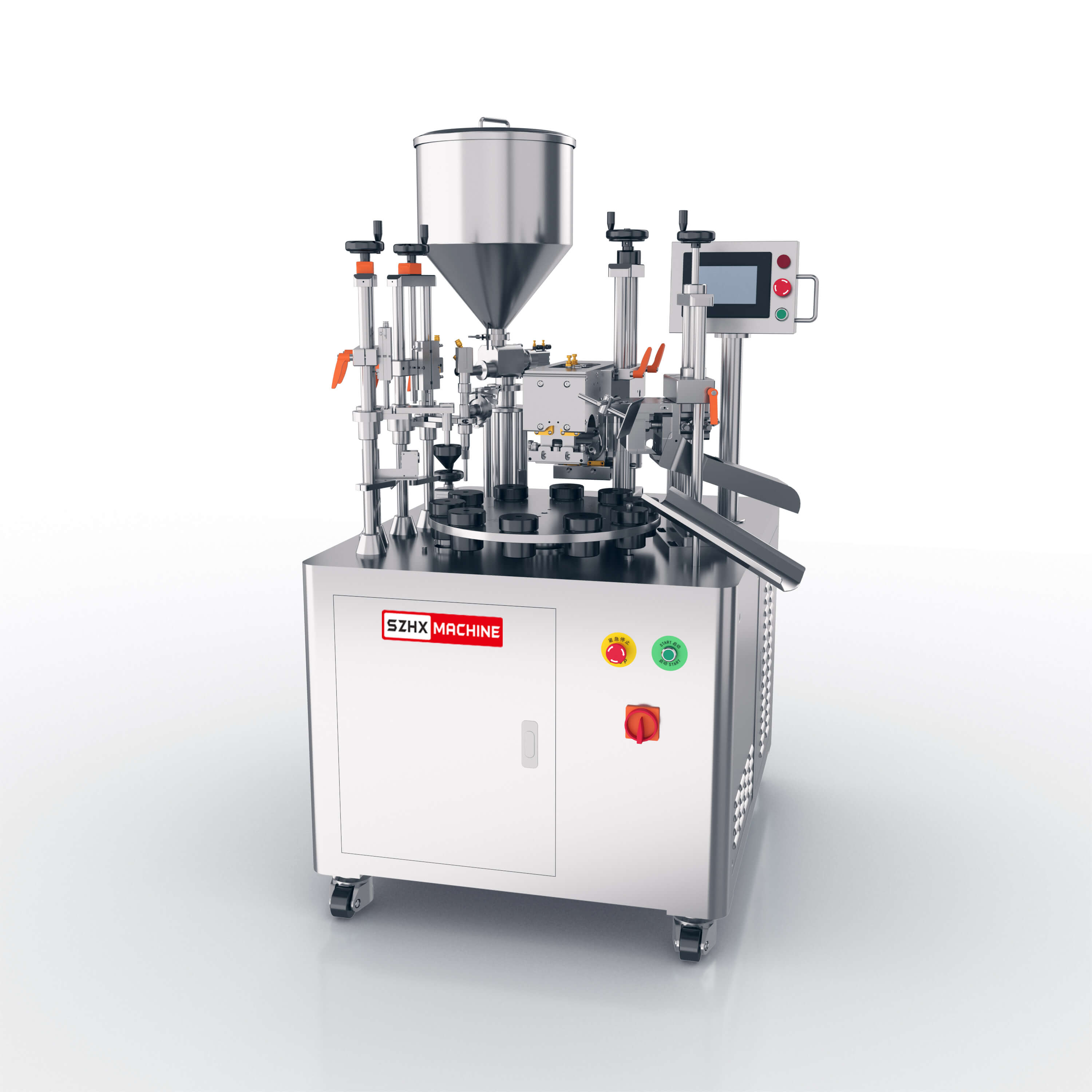

HX-006 Semi-Automatic Ultrasonic Tube Filling and Sealing Machine
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
Meet the HX-006: Your Ultimate Solution for Tube Filling and Sealing
Advanced Features of the HX-006 Semi-Automatic Ultrasonic Tube Filling and Sealing Machine
- Auto Refill pump.

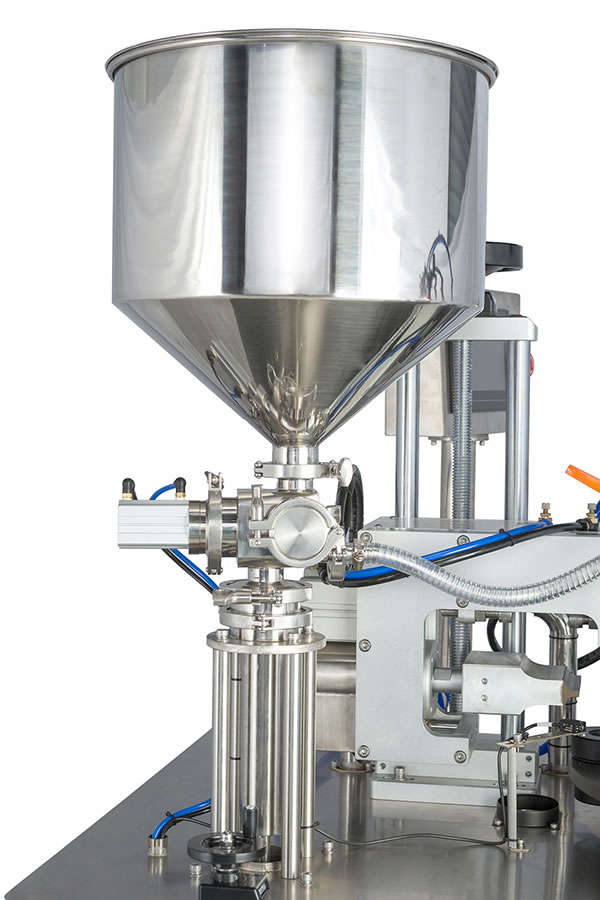

- Heating and mixing system for material hopper.
- Air blow system for high viscous and sticky material.

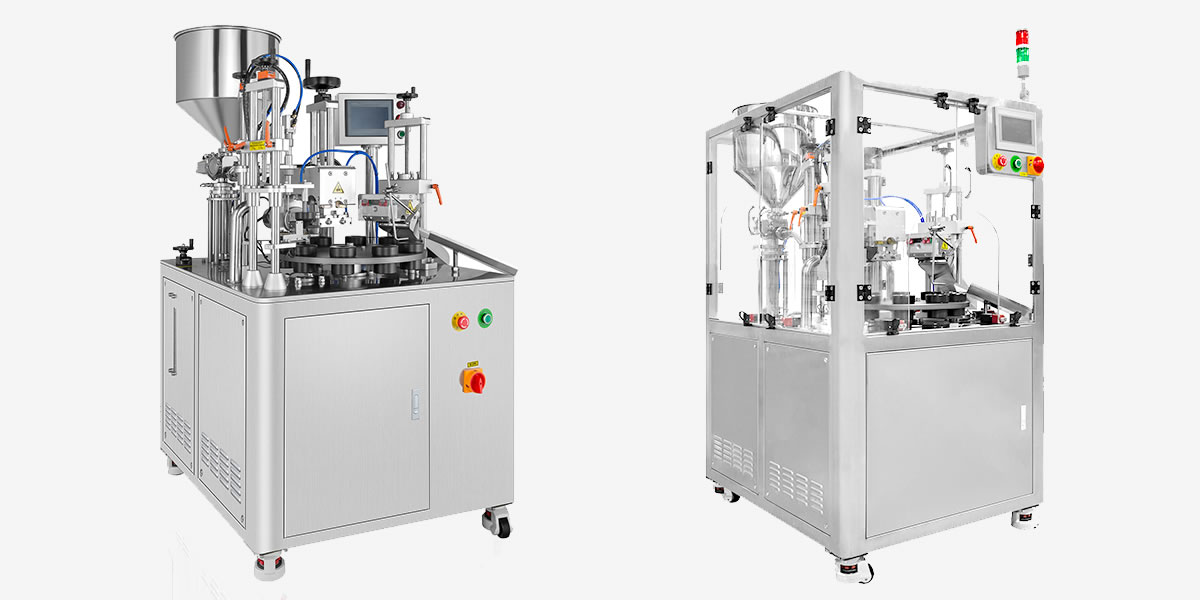

- Safety door.
- Industrial water chiller.
- 316L Stainless Steel Contact parts.

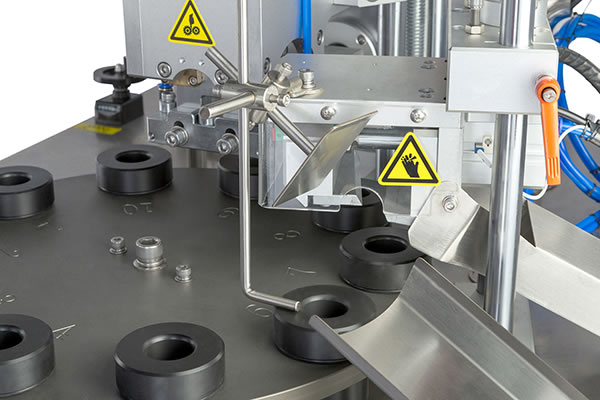

- Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.

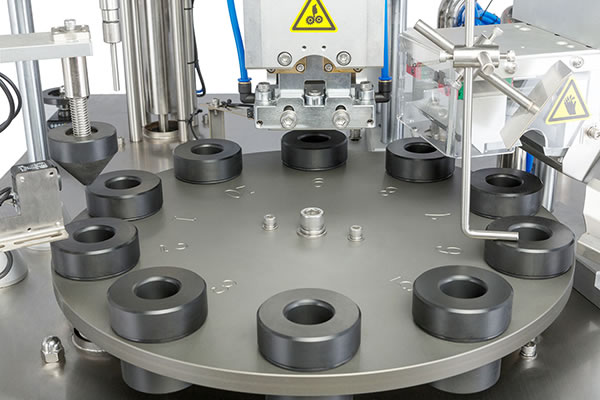

- Cam indexing system could position precisely for ten working stations.

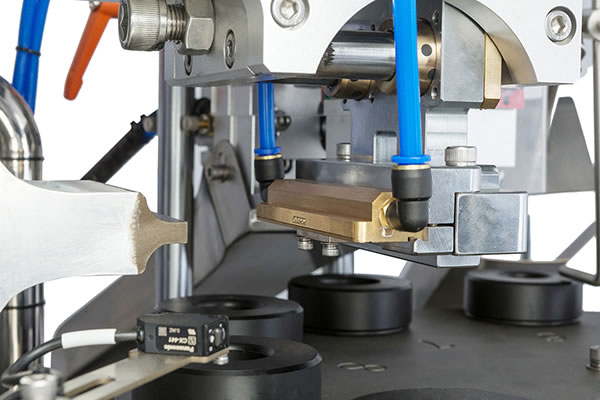

- Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

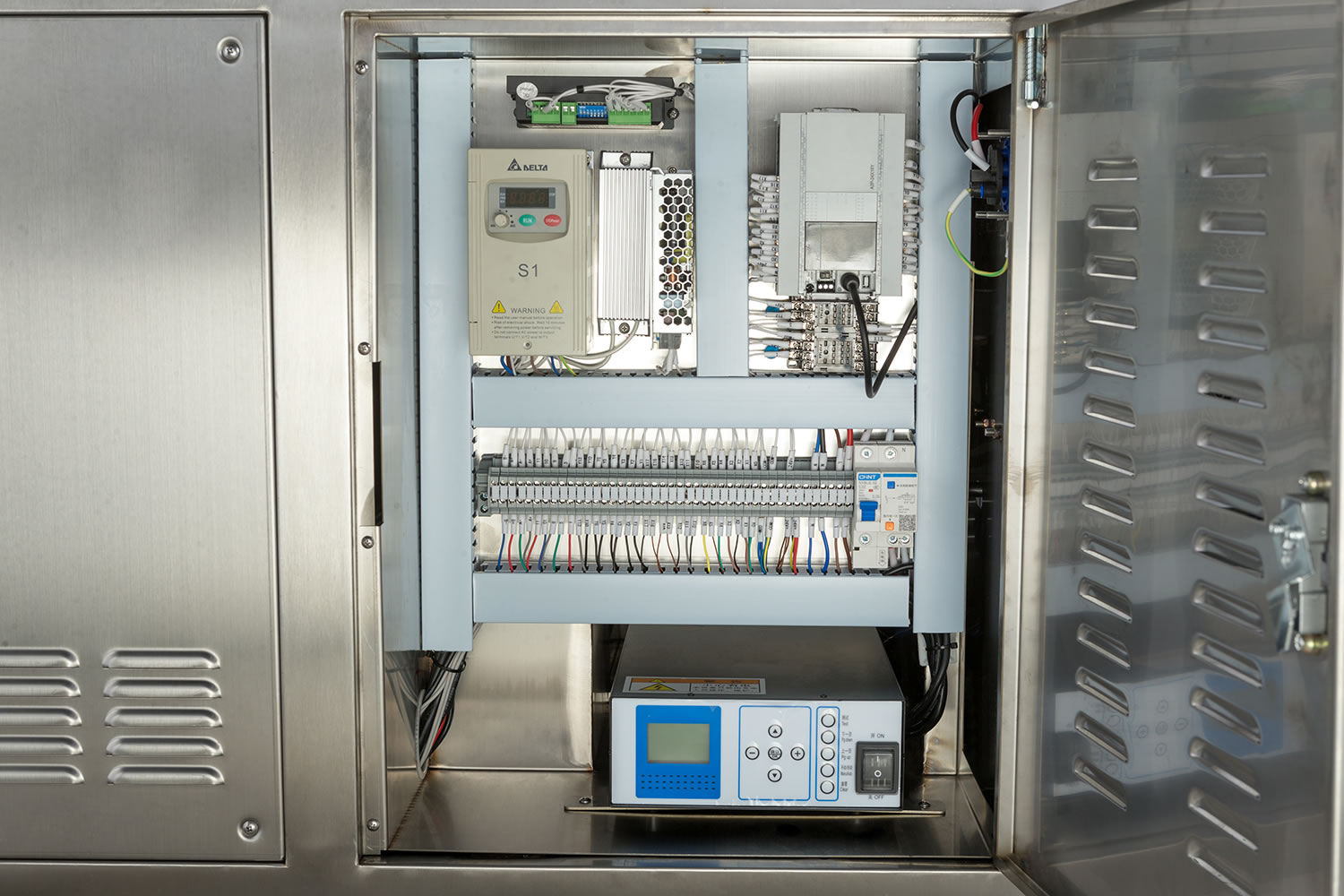

- Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
- PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
- Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
- No tube, no fill, no tube, no seal function, reducing the machine and mould loss.

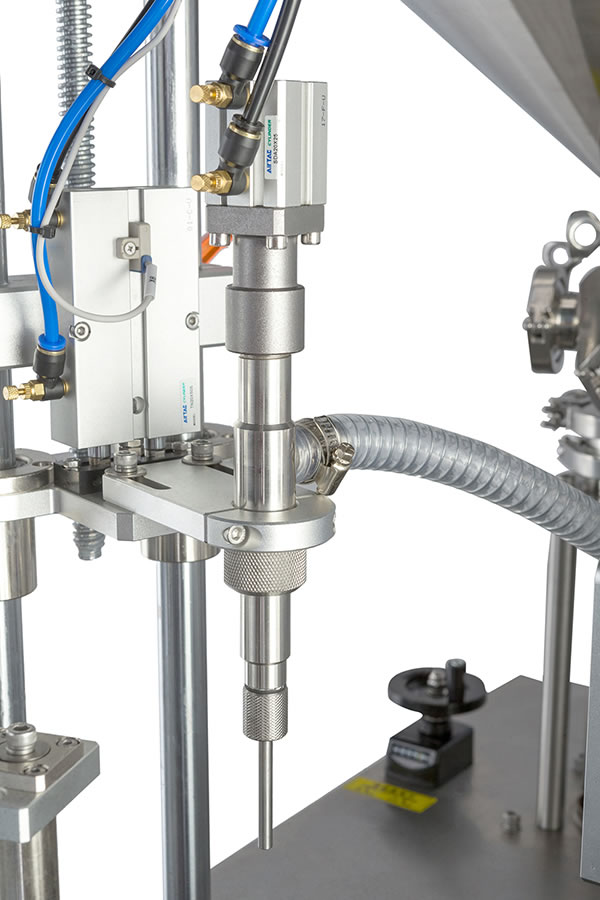

- Adopts Anti-dripping filling nozzle.
Specification & Technical parameter
| Machine Parameters | |
| Model | HX-006 |
| Frequency | 20kHz |
| Power | 2600W |
| Power supply | AC220V/110V |
| Filling Range | A.6-60mlB.10-120mlC.25-250mlD.50-500ml |
| Filling Accuracy | ±1g |
| Capacity | 20-25pcs/min |
| Tube Diameter | 13-50mm |
| Tube Height | 70-250mm |
| Working Pressure | 0.6 MPa |

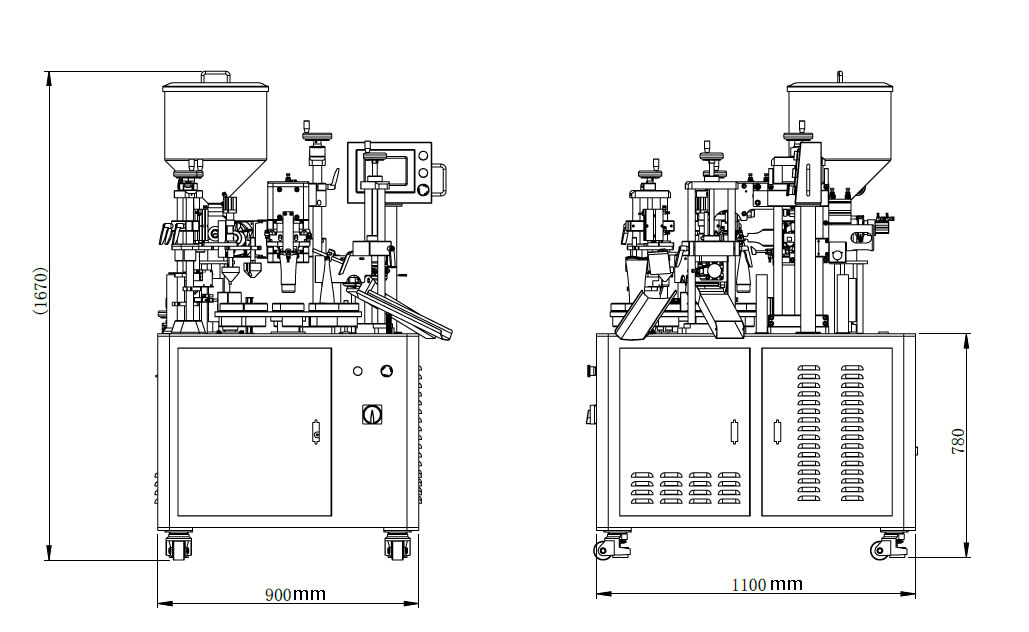

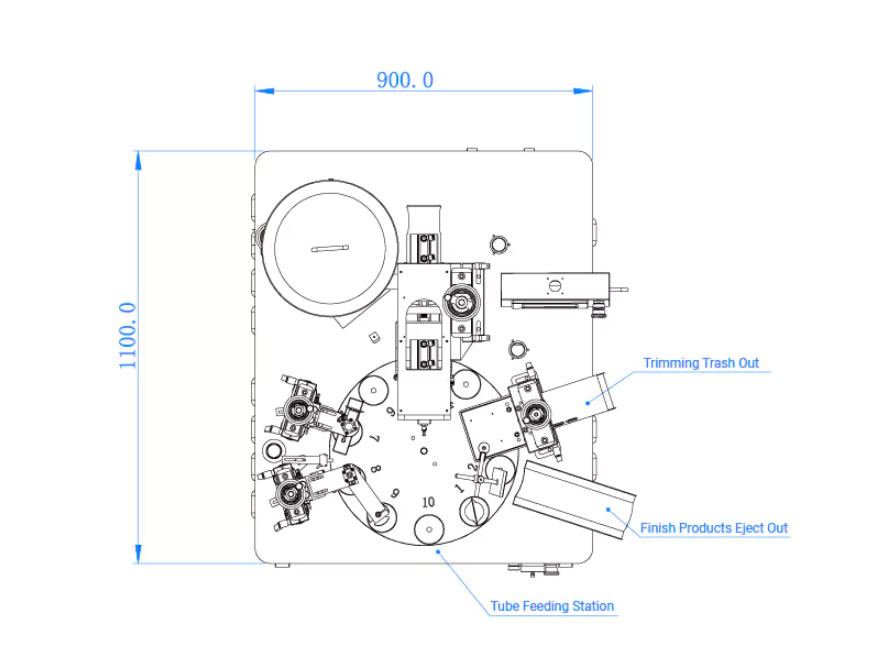

| Size | L900*W1100*H1600mm |
| N.W/G.W | 310kgs |
| Main part list: | |
| Ultrasonic System | Automatic Frequency Tracing |
| Benchmarking Electric Eye | Panasonic, Japan |
| PLC | Coolmay, CN |
| Electric Relay | Omron, Japan |
| Touch Panel | WEINVIEW, China Taiwan |
| Inductive Switch | SICK, Germany |
| Air Cylinder | AirTAC, China Taiwan |
| Solenoid Valve | AirTAC, China Taiwan |
| Motor | zhongdamotor CN |
| Partitioner | JOUDER, China Taiwan |
| Frequency Converter | DELTA, C,hina Taiwan |
| Stepper Motor | Leadshine, CN |
Ideal Applications for the HX-006 Semi-Automatic Ultrasonic Tube Filling and Sealing Machine

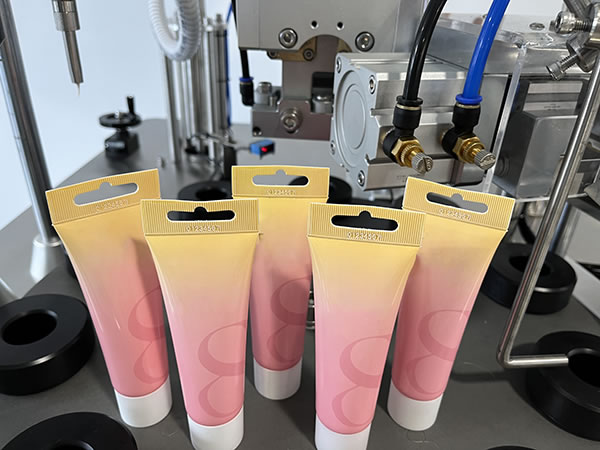

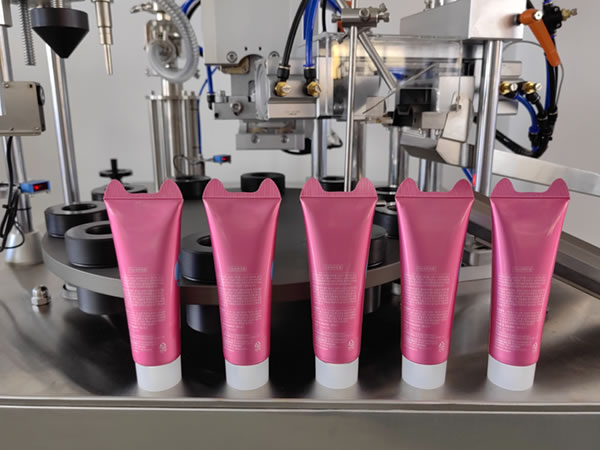

Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
Plastic and Composite Tube
Sunscreen-
Aloe Vera Gel
-
Eye Cream
Aluminum-Plastic Tube
-
Hand Cream
-
Silicone Grease
-
Body Lotion Cream
Custom-Made Tube
-
Facial Cleanser
-
Makeup Remover
-
Serum
