Meet the HX-006H: Your Ultimate Solution for Heat Seal tube filling sealing

The HX-006H Semi-Automatic Heat Seal Tube Filling and Sealing Machine is expertly engineered to provide precise and efficient filling and sealing of plastic and laminate tubes. Perfect for the cosmetic, pharmaceutical, and food industries, this machine combines cutting-edge heat sealing technology with user-friendly operation to deliver exceptional performance and reliability.

The HX-006H stands out with its precision, reliability, and ease of use, making it an essential addition to any production line aiming to enhance efficiency and product quality.

Advanced Features of the HX-006H Semi-automatic Heat Seal tube filling sealing machine

  • Full-automatic packaging design saves labor costs, high efficiency, direct connection to the production line, and large-scale automatic packaging batch output.
  • High efficiency of qualified production, multi-stage adjustment, servo-driven control, high precision, high accuracy, high qualification rate
  • Adopt a high-strength stainless steel frame that is easy to clean and disassemble and aligns with GMP requirements.

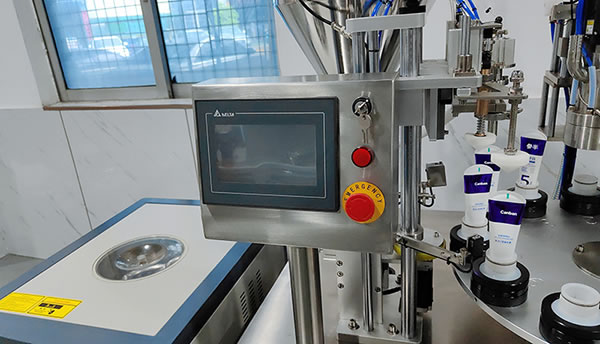

  • Simple adjustment of filling volume and filling speed, operated and displayed by touch screen, beautiful appearance.
  • With no tube, no filling function, and liquid-level automatic control filling,
  • Quickly replace the molds of different specifications.

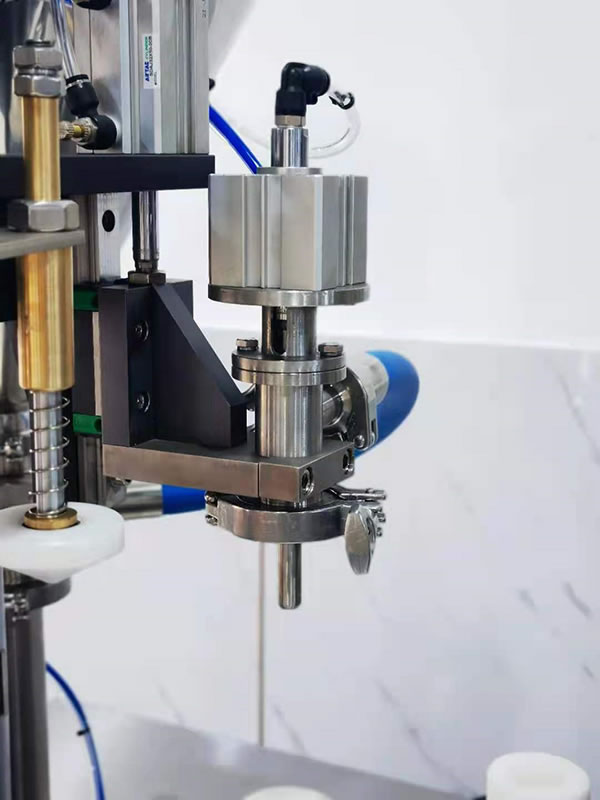

  • The filling head is equipped with a particular anti-leakage device, allowing filling without pulling or dripping.
  • It is used for tube filling and sealing, such as cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube, cosmetic tube.

Specification & Technical parameter

Machine Parameters
ModelHX-006F
Power supplyAC220V 50/60HZ singe phase
Motor Power1.5Kw
Heating power3.3Kw
Working pressure0.4-0.6Mpa
Filling Range30-300ml (could change for different filling range)
Sealing Dia.16-50mm (by different pucks)
Max. Tube height80-220mm
Capacity25-40 tubes/min
Dimension1335*960*1750mm
Machine Body304# stainless stee

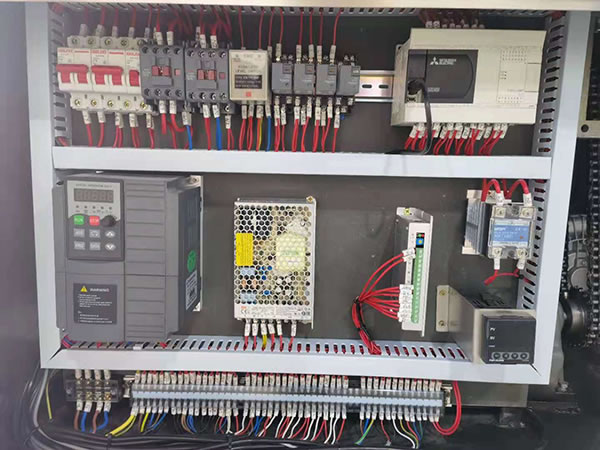

Main part list:
PLCMitsubishi
Touch PanelDelta
Color Mark SensorKeyence
Inner heating elementsSwiss Leister
InverterOulu
Pneumatic partsAirTac
Power supplyMean Well
Intermittent replyOmron

Ideal Applications for the HX-006H Semi-automatic Heat Seal tube filling sealing machine

Used for fills tubes with creams, gels, ointments, pharmaceutical, and cosmetics tube filling sealing.
