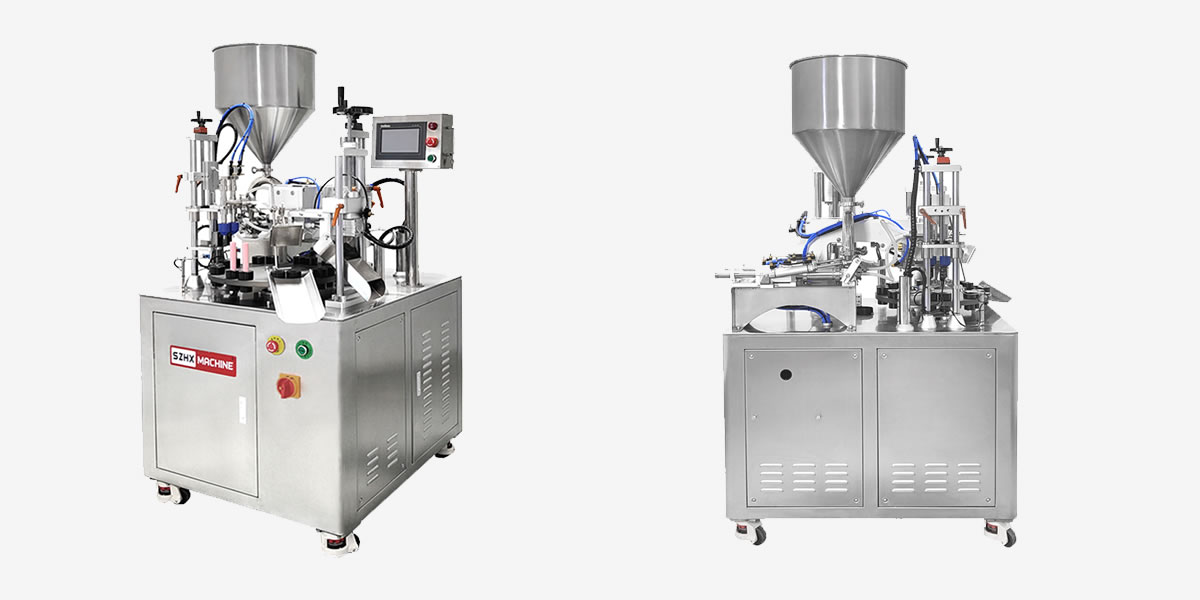

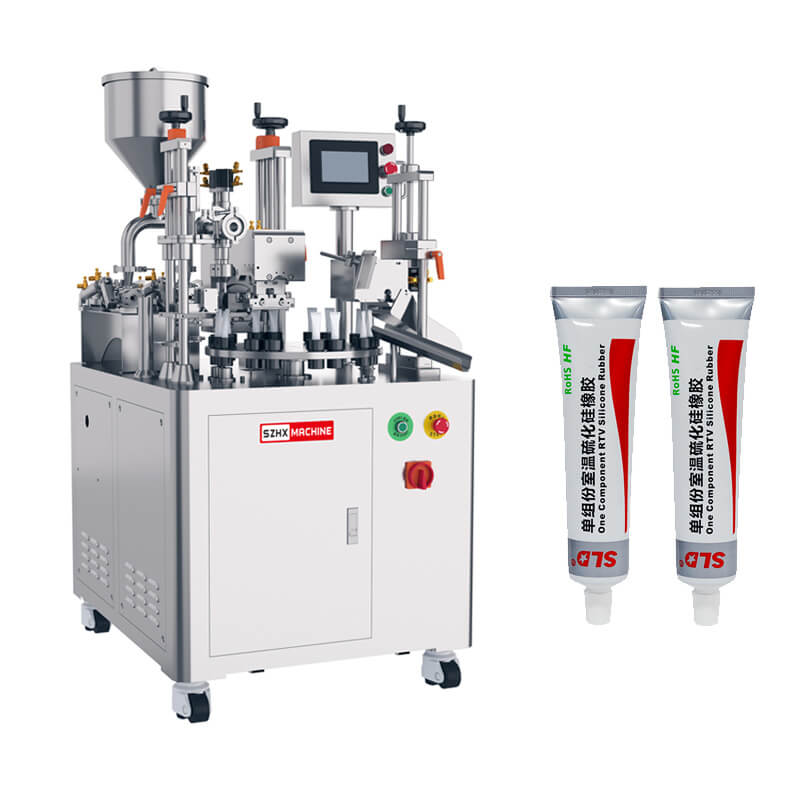

HX-006SS Semi-automatic Ultrasonic Double Tube Filling and Sealing Machine
Consult now to get discount
- High quality
- Fast delivery
- After-sales guarantee
Meet the HX-006SS: Your Ultimate Solution for Double Tube Filling and Sealing
Advanced Features of the HX-006SS Semi-automatic Ultrasonic Double Tube Filling and Sealing Machine
- Industrial water chiller.
- 316L Stainless Steel Contact parts.

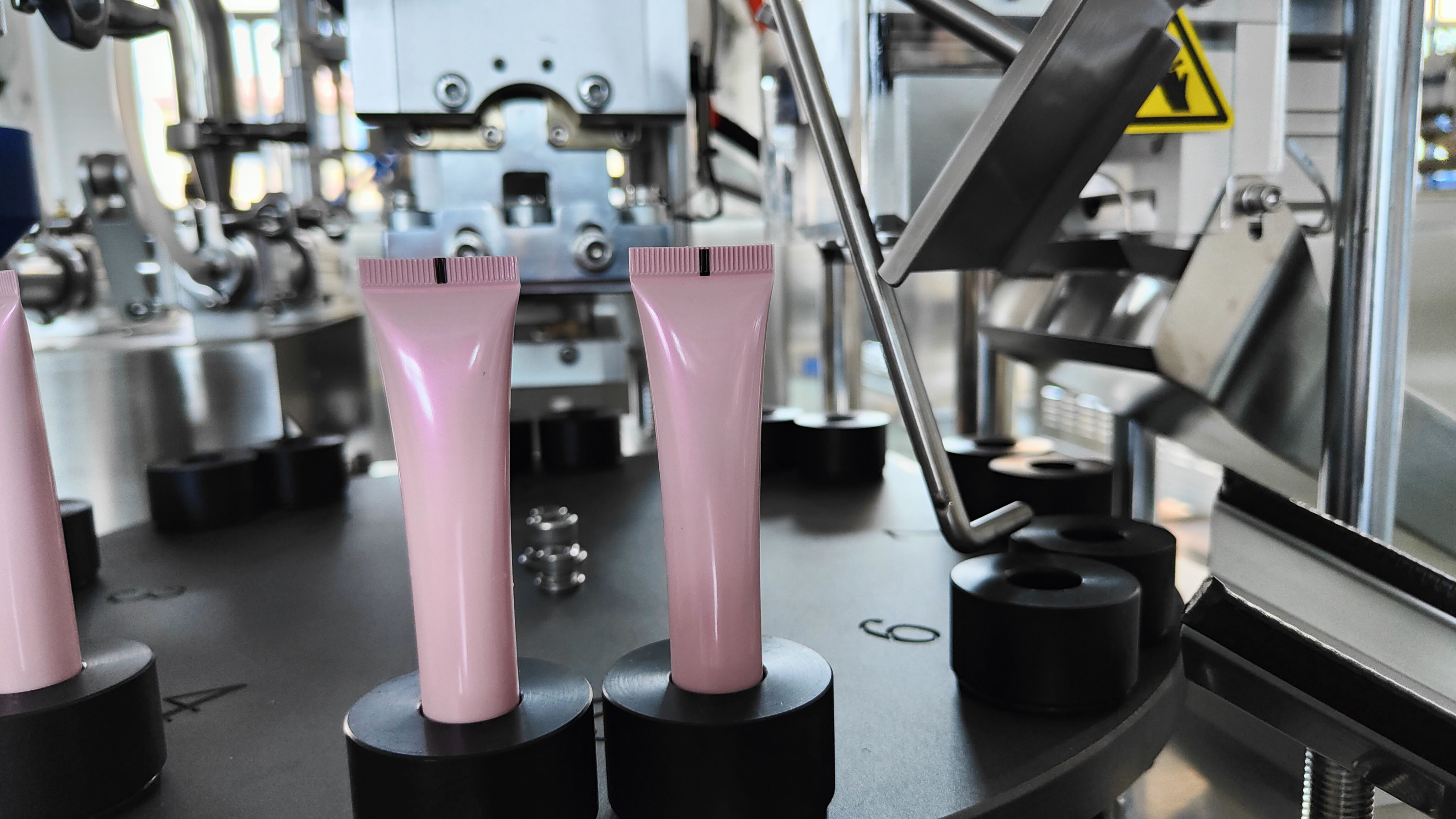

- Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.

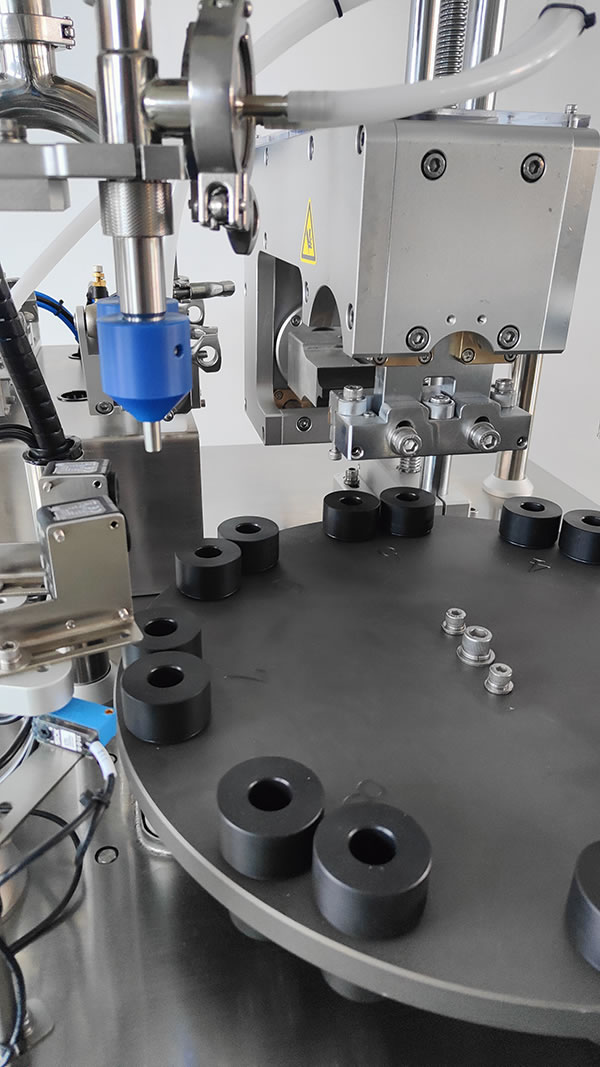

- Cam indexing system could position precisely for ten working stations.
- Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
- Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
- PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
- Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
- No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
- Adopts Anti-dripping filling nozzle.
Specification & Technical parameter
| Machine Parameters | |
| Model | HX-006SS |
| Source | 220v50/ 60Hz |
| Air Pressure | 0.5Mpa |
| Sealing efficiency | 40-50/min |
| Body material | 304 stainless steel |
| Sealing height | 50~210mm |
| Frequency | 20KHz |
| Seal diameter | 13-19mm |
| Power | 2.6KW |
| Dimension | 1070*830*1310mm |
| Weight | 212kgs |
| Pump | Ceramic pump (99.7%, stainless steel 304) |
| Filling accuracy | ±0.25-0.5ml (Depending on the material status) |
| Main part list: | |
| Ultrasonic system | Digital automatic tracking frequency |
| PLC/Touch screen | Coolmay |
| Color Mark Sensor | Panasonic, Japan |
| Electric relay | Omron, Japan |
| Frequency transform | Delta China Taiwan |
| Product sensor | SICK, Germany |
| Air cylinder | AirTAC, China Taiwan/ XINCHEN, CN |
| Solenoid valve | AirTAC, China Taiwan |
| Motor | ZD High-precision brake motor |
| Cam Indexer | YDDEX，China |
| Stepper motor | Leadshine，CN |
Ideal Applications for the HX-006SS Semi-automatic Ultrasonic Double Tube Filling and Sealing Machine
Applicable to: food, medicine, cosmetics, chemical and other industries of various plastic tube or aluminum plastic tube filling and sealing.
Sunscreen-
Body Lotion Cream
-
Aloe Vera Gel
