Meet the X15-1: Your Ultimate Solution for Automatic Bottle Filling And Capping

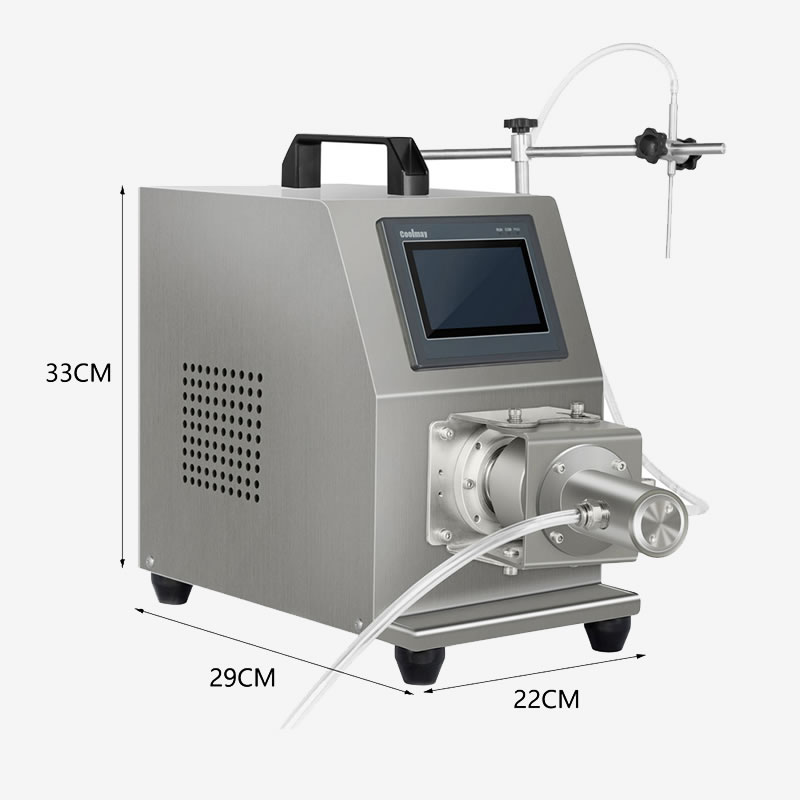

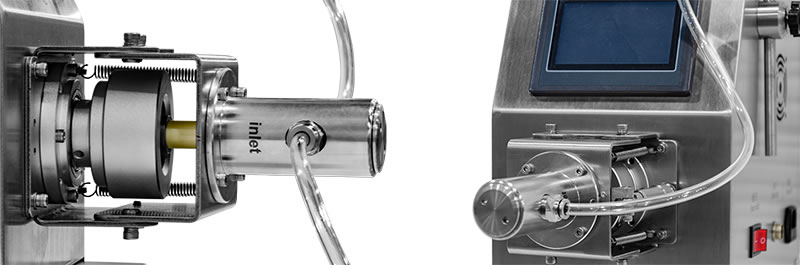

The X15-1 Table Top Digital Control Liquid Filling Machine is a high-precision filling solution designed for accuracy and reliability. Equipped with a ceramic plunger pump, this machine ensures precise dosing with top-quality performance. The user-friendly touch-screen interface makes operation simple, while the 304 stainless steel external chassis provides durability and resistance to harsh environments. This machine is ideal for precision quantitative filling in a variety of industries, including food, pharmaceuticals, chemicals, and cosmetics, offering stable and dependable operation for high-demand applications.

Advanced Features of the X15-1 Table Top Digital Control Liquid Filling Machine

  • Pharmaceutical, food, cosmetic industry’s highest hygiene and health standards.
  • Inert chemical stability, acid-base corrosion and high temperature resistance.
  • Hard, abrasion resistant, particle release is extremely small, long service life.
  • Dense material, water absorption as low as zero; very high surface finish, minimal friction; therefore minimal residual materials.
  • Thermal expansion coefficient is small, piston clearance fit more, filling accuracy can be achieved online cleaning and sterilization.
X15-1 Table Top Digital Control Liquid Filling Machine

Technical Parameters

ModeX05X07X10X13X15X22X25X36
Plunger diameter5mm7mm10mm13mm15mm22mm25mm36mm
MaterialPlunger, pump housing (99.99% alumina)
Output quantity per revolution0.17ml/rev0.3ml/rev0.7ml/rev1.6ml/rev2.9ml/rev6ml/rev12ml/rev25ml/rev
Filling accuracy±≤1%±≤0.5%±≤0.5%±≤0.5%
Rotate Speed0-600PRM0-500PRM0-300PRM0-150PRM
Placement Angle15°20°20°20°
Throughput pressure0.6MPa0.6MPa0.5MPa0.4MPa
Maximum suction height4mm
Weight1kgs2kgs3.5kgs7.5kgs

Ideal Applications for the X15-1 Table Top Digital Control Liquid Filling Machine

  • Laboratories, universities, pharmaceutical factories, hospitals, cosmetics industry.
  • Widely applied to precision quantitative filling of industries such as medicine, pharmacy, food, chemistry, cosmetics, etc.
  • Used for precision quantitative filling of liquids such as blood, biological reagent, oral liquid, injection liquid, senior cosmetics, fragrance, fungicide, etc.
  • Used for precision quantitative filling of all kinds of acid and alkali corrosive liquid.
